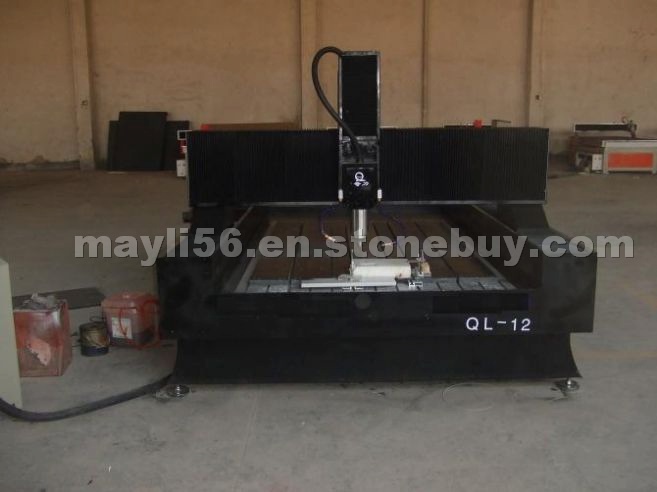

• Marble Engraving Machine QL-1218
  Heavy Model, Popular use in marbleworks.
  Details:
  1 imported linear square rails, dual four slider, loading capacity, smooth operation and high knife precision.
  2 Entire machine seamless welded steel structure, rigid Haobu deformation, table back lining plate,rigid strength
  3 constant power spindle motor, cutting intensity, high efficiency.
  4 software compatible with Typ3/Artcam/Castmate /Wentai,other CAD/CAM design software
  5 two-way tool cooling system, effectively raising tool life
  Appliable Fields:
  1, stone crafts, make relief, scrupture,big statue,pottery and porcelain decration,etc.
  2.advertising industry: large advertising signs, acrylic brands,tableets,calligraphy,3D characters,garden or wall decoration,logo, acrylic cutting, forming system module, billboard field, characters cutting, plate, LED/neon channel, literal-hole cut, blisterLightbox mold, stamp,mould.
  3, die industry: a sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
  4. Woodworking: 3D wave plate, cupboard doors,furniture industry, decorative material,cabinet door,computer table, cabinets and panels,plastic fabrication,model,art crafts,musical instrument, plate.
  5, others: large-scale relief sculpture, video carving,craft and gift, widely used in process industries gifts.

  Capacity:
  1.X.Y working area-1200*1800mm
  2.Z working area- 120mm
  3.Table-1440*3000mm
  4.operating speed-8m/min
  5.carving speed-6m/min
  6.Resolution-0.01mm
  7.Repeat positioning accuracy-0.05mm
  8.Feeding height-120mm
  9.Command-G code*.u00*.mmg*.plt
  10.Surroundings for software-windows98/2000/xp
  11.Power(exclude spindle)-1500w
  12.Work voltage-AC220V/50Hz
  13.Spindle power-4.5KW
  14.Spindle rotating speed-24000rpm/min
  15.Work Mode-Stepper
  16.Package size and Weight-1225*2310*175cm 1000KG
